THERMOMAX® CPM

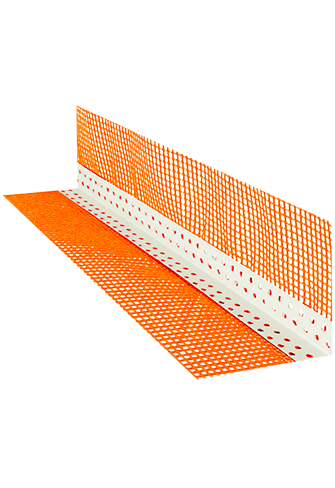

THERMOMAX® CPM is a PVC corner profile with alkali-resistant glass-fibre mesh. It is used in external thermal insulation composite systems (ETICS) at building corners and at the external corners of window and door openings.
Fields of Application
• At external building corners in external thermal insulation composite systems (ETICS)
• At the external corners of window and door openings (reveals)
• At column, beam, balcony and eaves corners
• On EPS, XPS and mineral wool boards
Advantages
• Protects corners against impact and mechanical damage
• Creates a straight, sharp corner line and acts as a corner screed guide when rendering
• The factory-attached mesh removes the need to wrap separate mesh around the corner and speeds up application
• PVC does not rust and leaves no rust stains on the façade
• Easy to cut and install
|
General Information |
|
|
Profile material |
PVC |
|
Profile leg size |
21 × 21 mm |
|
Mesh |
Alkali-resistant glass-fibre mesh |
|
Mesh wing width |
80 × 80 mm |
|
Profile length |
2.5 m |
|
Performance Data |
|
|
Service temperature |
−40°C / +80°C |
|
Corrosion resistance |
PVC; does not rust |
|
Application Data |
|
|
Installation sequence |
After anchoring, before the main reinforcing mesh |
|
Overlap with main mesh |
Profile mesh fully covered |
|
Consumption |
Equal to corner length (m/m) |
The technical values stated were obtained at an ambient temperature of +23°C and 50% relative humidity.
