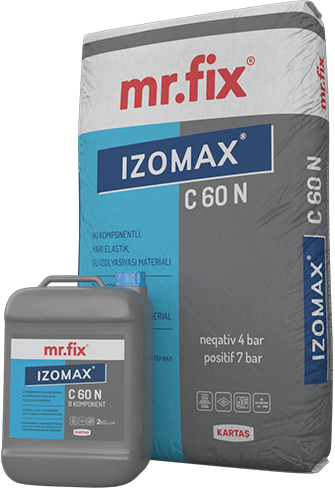

IZOMAX® C60 N
IZOMAX® C60 N is a two-component, fully elastic, cement and polymer emulsion based waterproofing material that can be used from both the negative and the positive side.
Complies with class CMO2P according to EN 14891.
CM: Cementitious waterproofing material applied in liquid form
O2: Crack-bridging ability (-20°C)
P: Bond strength in chlorinated water
Areas of Application
• Indoor and outdoor areas, on vertical and horizontal surfaces
• Building foundation waterproofing, retaining walls, and concrete structures
• Tunnels
• Wet areas such as toilets, bathrooms, kitchens, terraces, and balconies
• Swimming pools and drinking water tanks
• Protection of concrete surfaces against carbonation and chloride attack
Advantages
• Fully elastic waterproofing material
• Resistant to both negative and positive water pressure
• Provides excellent adhesion
• Easy to prepare and apply
• Can be applied with a brush or sprayer
• Waterproof yet vapour-permeable
• Resistant to freeze-thaw cycles
• Resistant to atmospheric carbon dioxide and chloride attack
|
General Information |
|
|
Material composition |
Special cement, mineral fillers, liquid polymer emulsion, and special chemicals |
|
Elasticity class |
CMO2 fully elastic |
|
Appearance |
Grey |
|
Density (mixed) |
~1.98 kg/L |
|
Performance Data |
|
|
Initial bond strength (EN 14891) |
≥ 0.50 N/mm² |
|
Bond strength after water contact (EN 14891) |
≥ 0.50 N/mm² |
|
Bond strength after heat ageing (EN 14891) |
≥ 0.50 N/mm² |
|
Bond strength after freeze-thaw cycles (EN 14891) |
≥ 0.50 N/mm² |
|
Bond strength after contact with chlorinated water (EN 14891) |
≥ 0.50 N/mm² |
|
Crack bridging +20°C (EN 14891) |
≥ 1.50 mm |
|
Crack bridging −20°C (EN 14891) |
≥ 1.00 mm |
|
Capillary water absorption (EN 1062-3) |
≤ 0.10 kg/m²·h⁰·⁵ |
|
Watertightness (EN 14891) |
Watertight (150 kPa / 7 days) |
|
Water penetration resistance |
≥ 7 bar (positive) |
|
Application Data |
|
|
Application temperature |
+5°C / +30°C |
|
Service temperature |
−20°C / +80°C |
|
Mixing ratio |
25 kg powder + 2 kg liquid Component B + 5–5.5 litres water |
|
Pot life |
~1 hour |
|
Number of coats |
2–3 coats |
|
Waiting time between coats |
Min. 5 hours |
|
Waiting time before tiling |
Min. 1 day |
|
Time to become watertight |
7 days |
|
Full cure time |
Min. 48 hours |
|
Time before exposure to use |
1 week |
|
Consumption |
1.20–1.30 kg/m² (per coat) |
|
Safety Data |
|
|
Hazardous substances |
Refer to SDS |
The figures stated above are valid at an ambient temperature of +23°C and 50% relative humidity. Higher temperatures shorten the time, while lower temperatures extend it.
